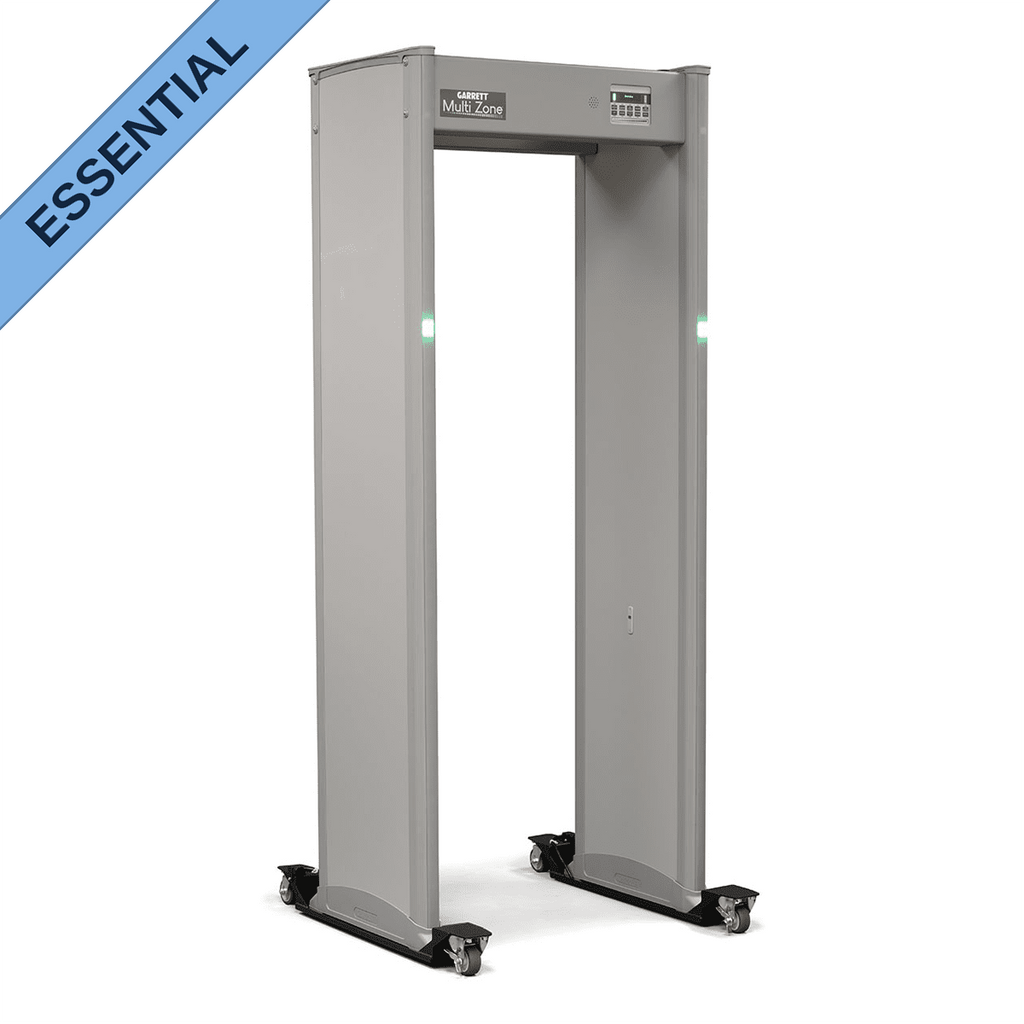

Multi-Zone Walk-Through Metal Detector

Multi Zone^™

Walk-Through Metal Detector

FAST, EASY, VERSATILE SECURITY

A cost effective solution for smaller venues like Schools, Offices, Warehouses, Hotels, Night Clubs and Events.

Models:

• • Standard 30" Passageway (GMD-1171010)
  • ADA Compliant 32.5" Passageway (GMD-1171005)

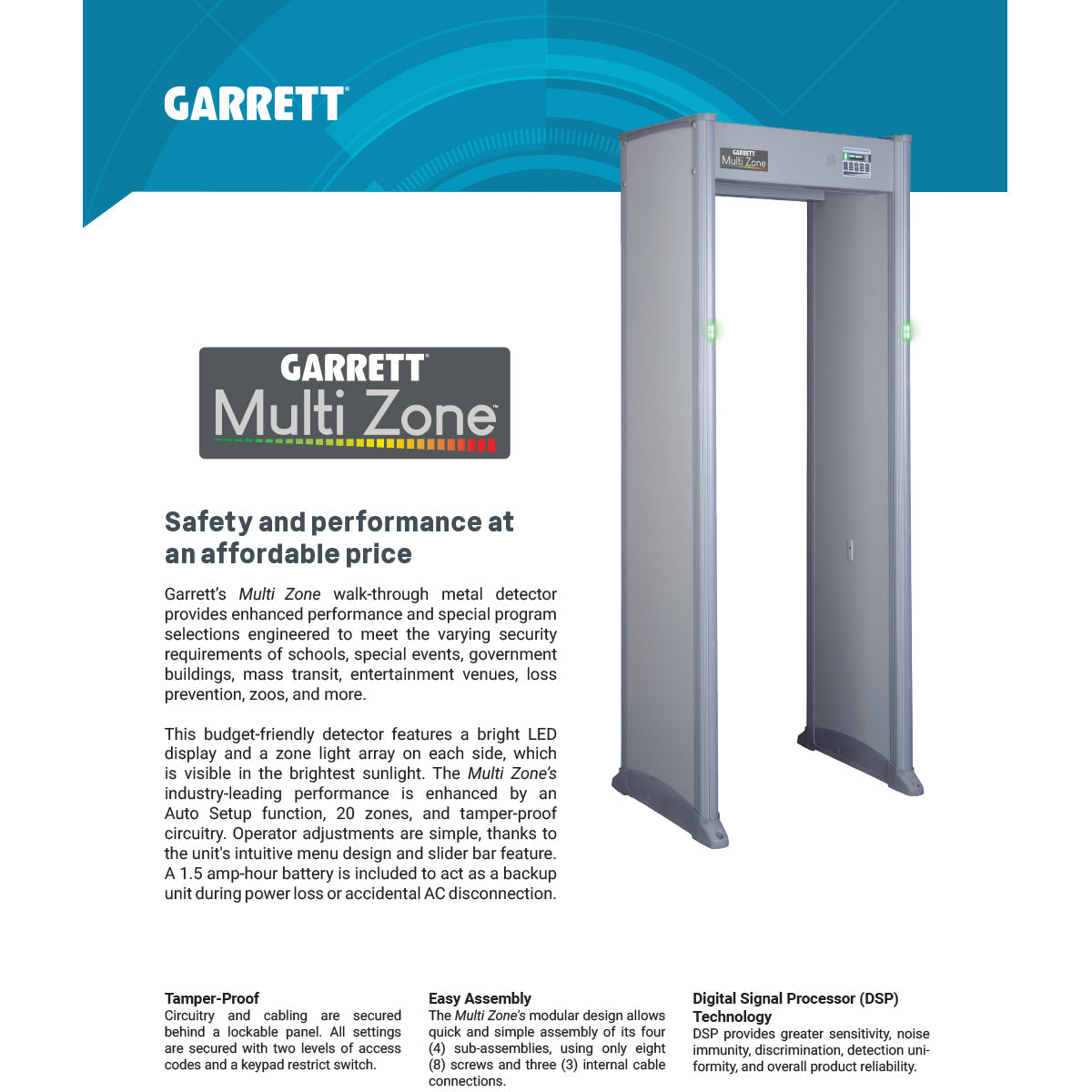

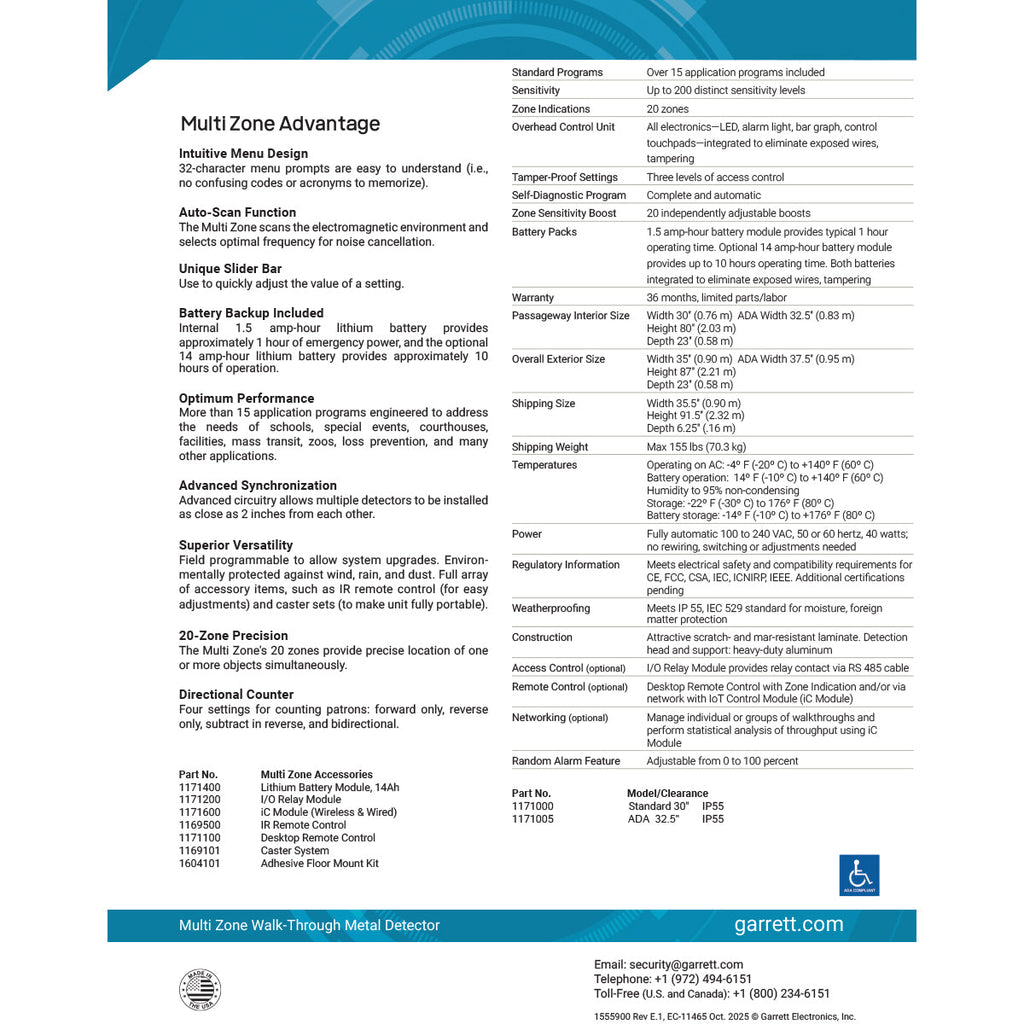

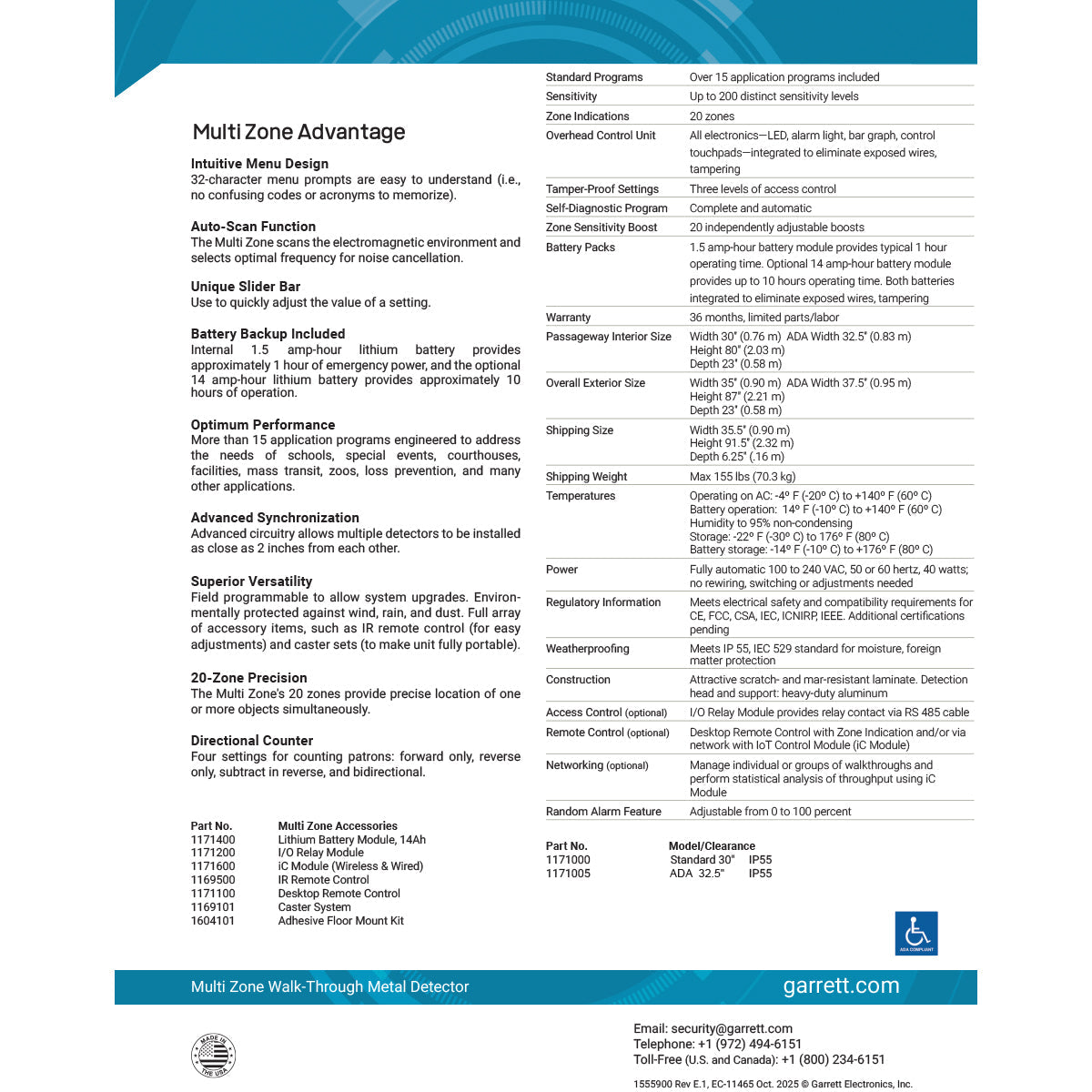

Click Here: Multi Zone Walk-Through Metal Detector Specification Sheet

Click Here: Multi Zone Walk-Through Metal Detector EDUCATION brochure

ACCURATE PINPOINTING
Precise Multi-Zone Detection: 20 zones provide exact locations of multiple objects simultaneously.
Bright LED Indicators: Visual signals for both panels enhance threat identification.

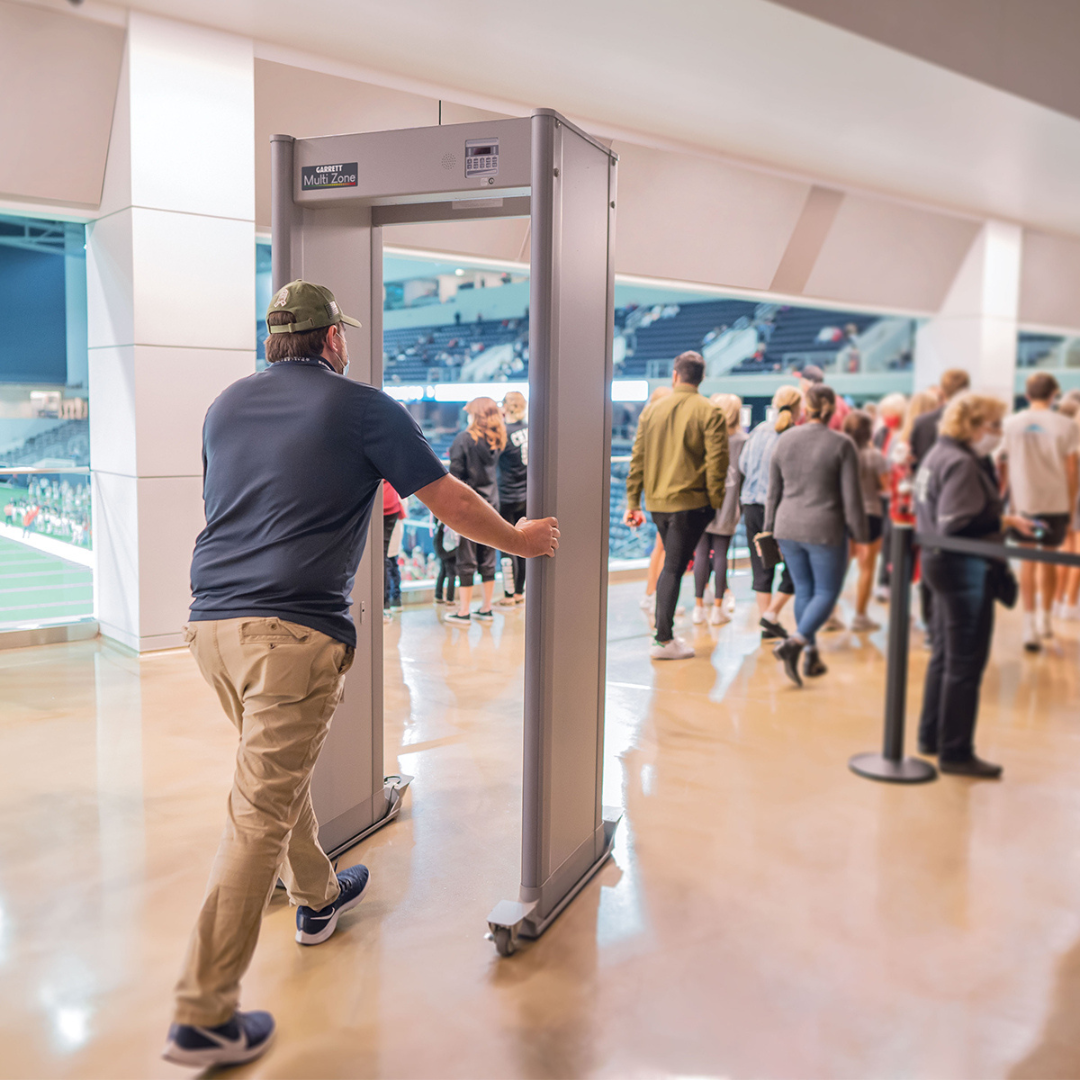

PORTABLE PROTECTION

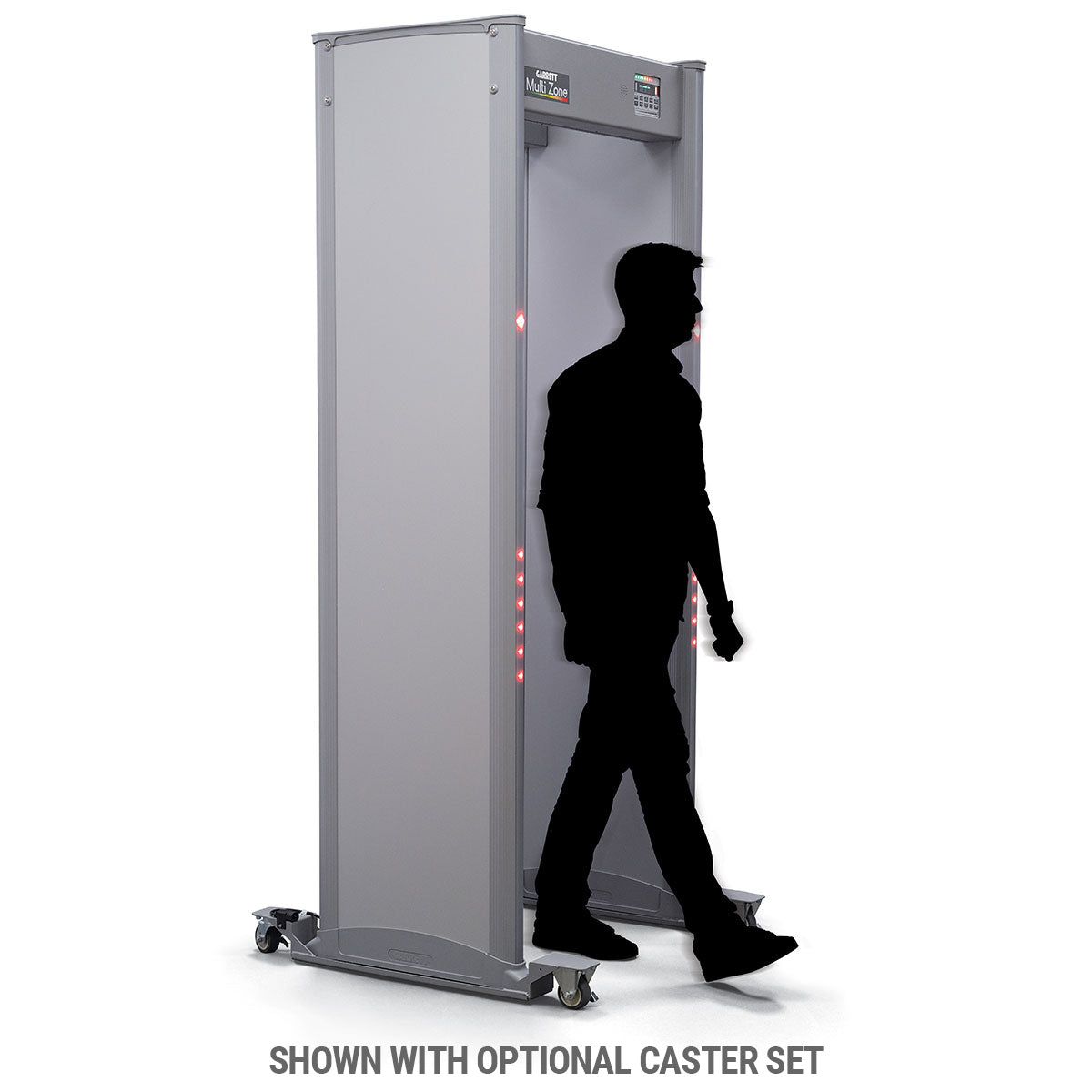

Rapid Deployment: Optional casters and battery module for quick setup and mobility.
No Wires: Easily move and deploy at various locations.

OPTIMUM PERFORMANCE
Versatile Programs: Over 15 applications for diverse settings including schools, airports, and events.
Field Programmable: Environmentally protected for reliable performance.

HOW IT COMPARES WITH THE PD 6500i.
Detection Zones: The Multi Zone has 20 zones, while the PD6500i offers 33 zones for superior target detection and location.
Backup Battery: The Multi Zone includes a 1-hr backup battery with an option to upgrade to 10-hrs, while the PD6500i has an optional 10-hr backup battery.
Dual Detection: Multi Zone utilises Single Detection, while the PD6500i is a Dual Detection system.
Synchronization: Both models synchronize with wired and wireless operations, but Multi Zone includes an auto frequency scan.

FEATURES
Competitively priced, Garrett’s Multi Zone walkthrough metal detector provides enhanced performance and superior versatility. More than 15 special program selections have been engineered to meet the varying requirements of schools, stadiums, government buildings, airports, special events, prisons, night clubs, entertainment venues, loss prevention, and more.

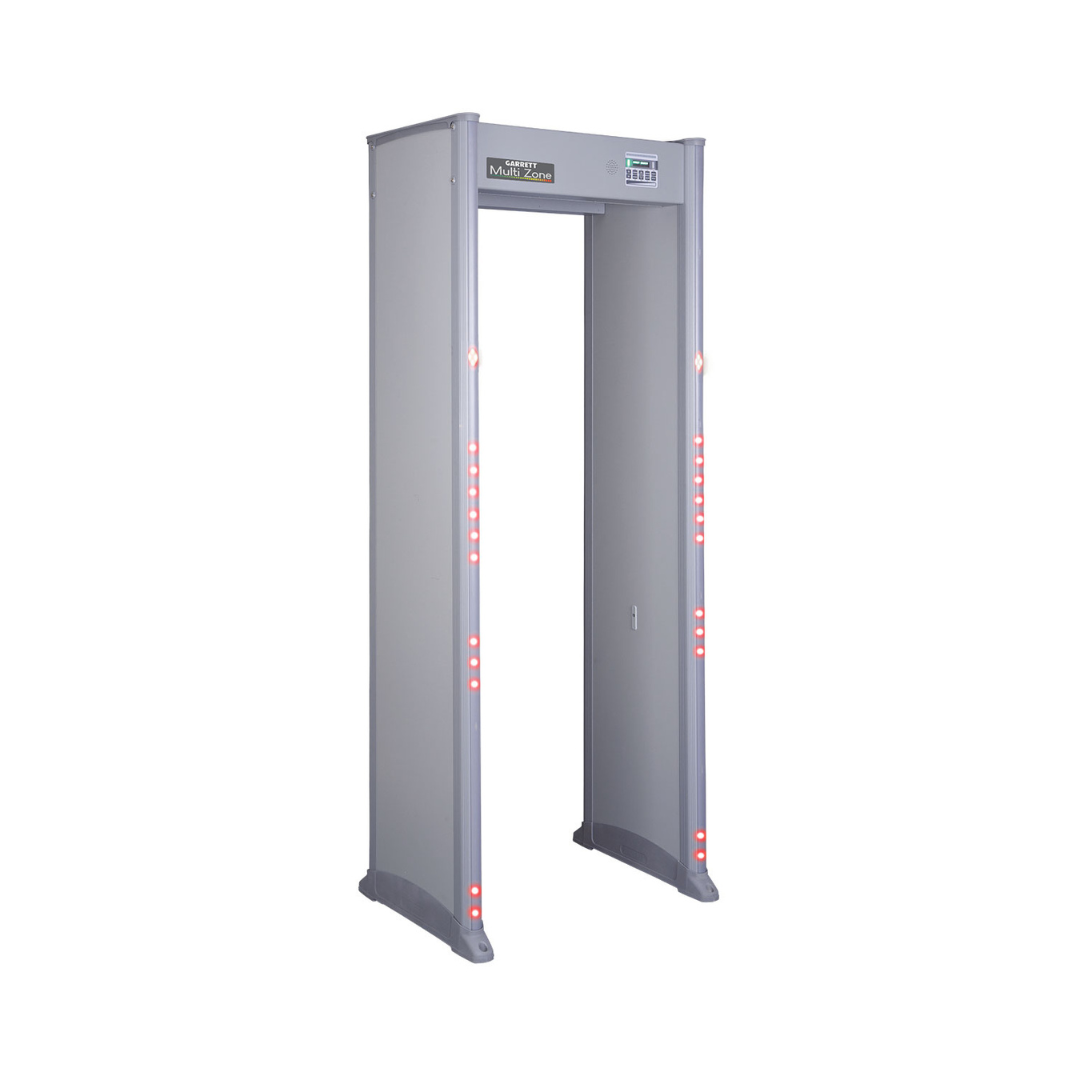

The Multi Zone’s bright LED indicators are highly visible in the brightest sunlight. The unit’s 20 vertical zones provide precise pinpointing for one or more objects simultaneously, and advanced circuitry allows multiple detectors to operate as close as 2 inches from each other. Operator adjustments are simple, thanks to an intuitive menu design and slider bar settings access. The Multi Zone also includes an Auto Setup feature that chooses the optimal operating frequency based on the electromagnetic environment.

OPTIMUM PERFORMANCE
More than 15 application programs engineered to address the needs of schools, airports, special events, prisons, courthouses, facilities, mass transit, loss prevention, and other applications.

20-ZONE PRECISION

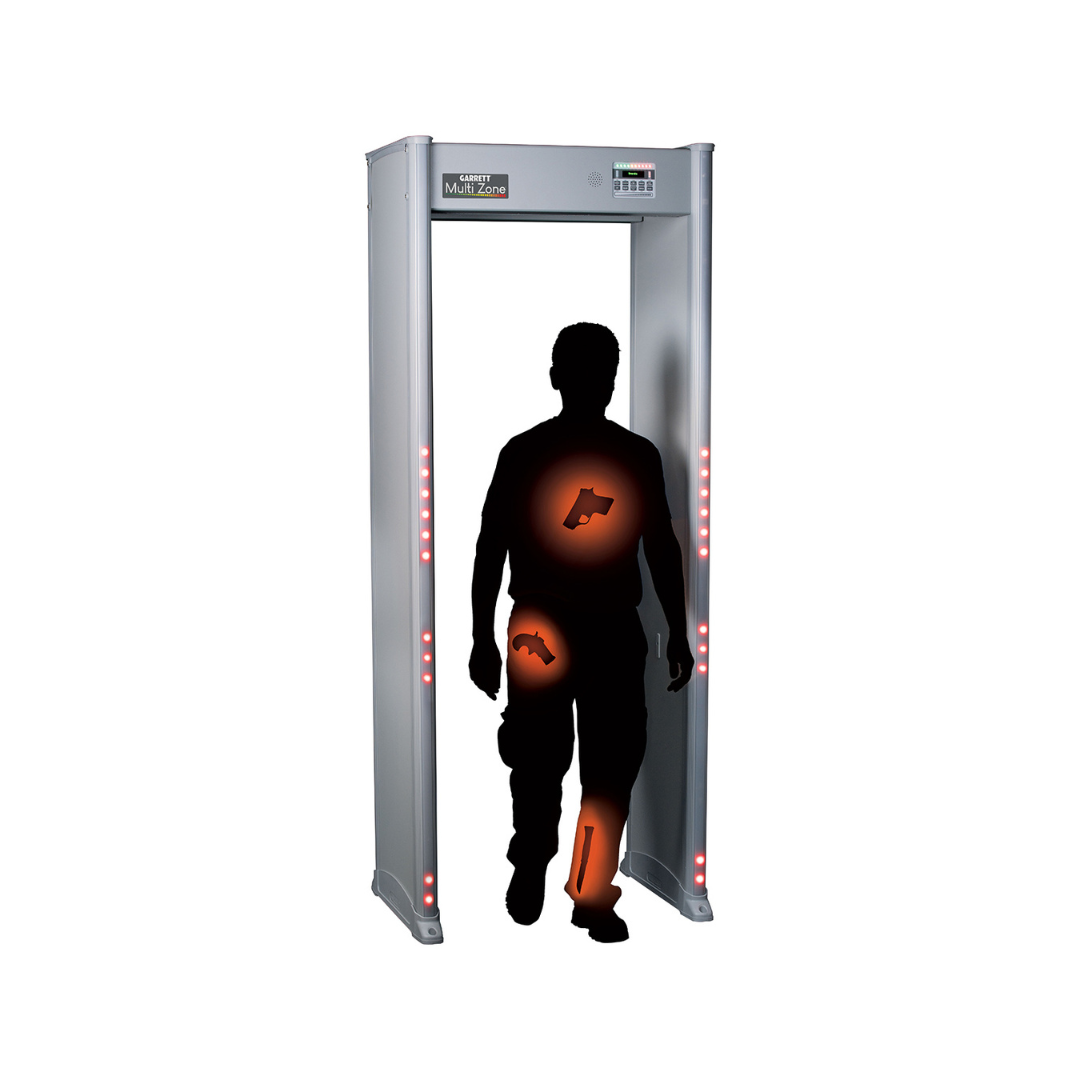

The Multi Zone's twenty zones provide precise location of one or more objects simultaneously.

DIRECTIONAL COUNTER
With four settings for counting patrons: forward, reverse, subtract in reverse, and bi-directional.

NETWORK ABILITY
Manage walkthroughs individually or as groups and perform statistical analysis via network with CMA interface module.

AUTO-SCAN FUNCTION
The Multi Zone scans electromagnetic environment and selects optimal frequency for noise cancellation.

SUPERIOR VERSATILITY
Field programmable to allow system upgrades. Environmentally protected against wind, rain and dust.

ENHANCED ACCESS CONTROL
Tamper-free detector controls via a 5-digit alpha/numeric system that has 60 million code combos. Additional security measures include a programmable keypad restriction switch secured in the lockable cabinet.

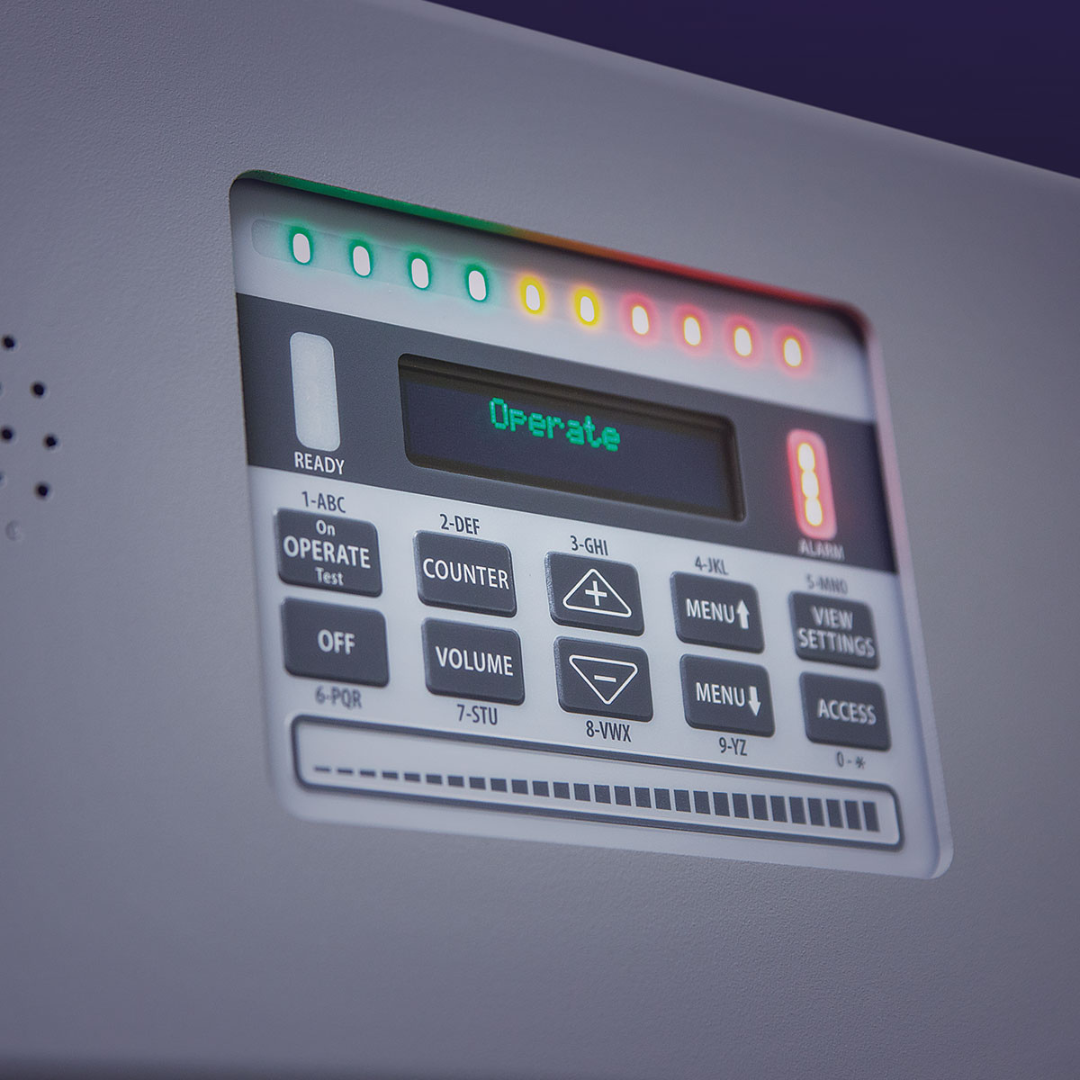

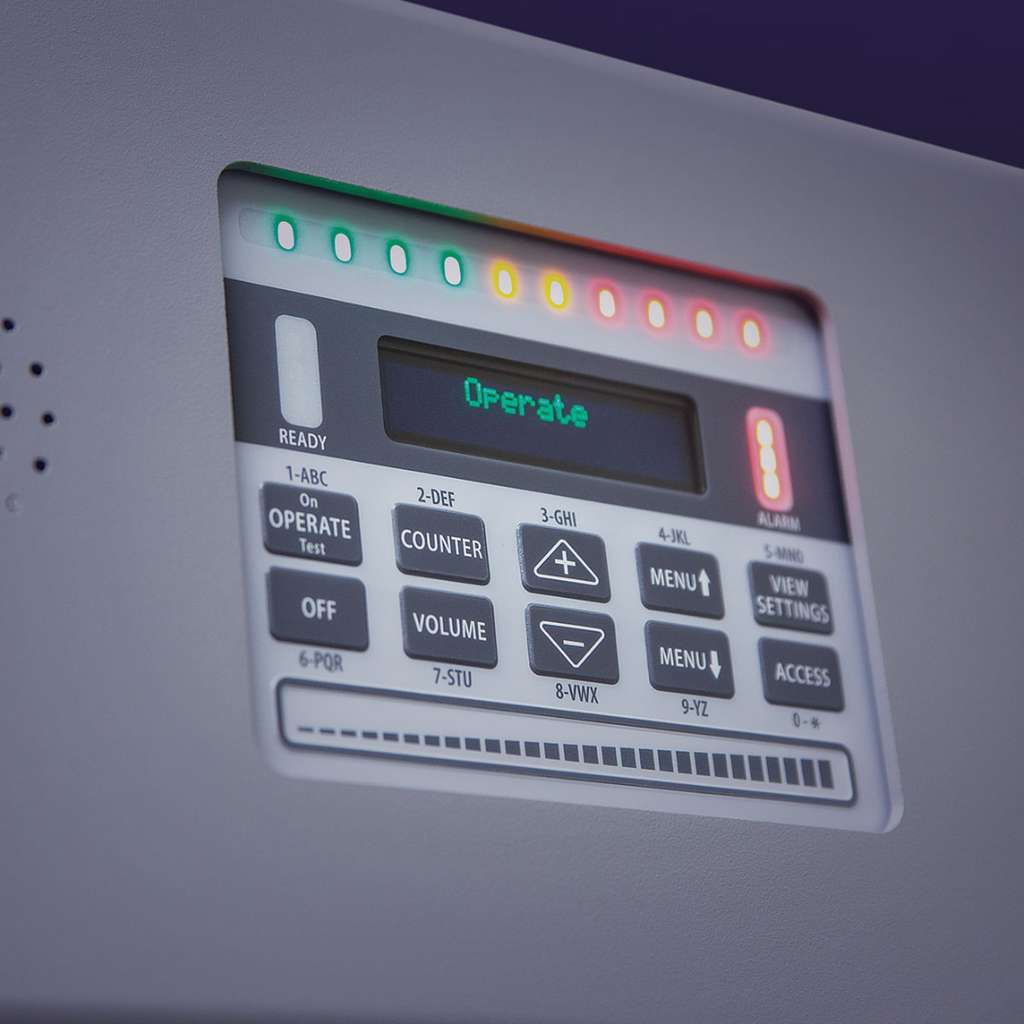

INTUITIVE MENU DESIGN
32-character menu prompts are easy for users to understand (i.e., no codes, acronyms to memorise).

BRIGHT LED INDICATORS
Eye-level green and red status lights, and zone indicators are highly visible, even in direct sunlight.

INTERNAL SD MEDIA PORT
Easy updating of software.

ADVANCED SYNCHRONISATION
Advanced circuitry allows multiple detectors to installed as close as 2 inches (5 cm) from each other.

UNIQUE SLIDER BAR
Use to quickly adjust the value of a setting.

BATTERY BACKUP INCLUDED
Internal 1.5 amp-hour lithium battery provides approximately 1 hour of emergency power, and the optional 14 amp-hour lithium battery provides approximately 10 hours of operation.

EASY ASSEMBLY
The  Multi  Zone's  modular  design  allows quick  and  simple  assembly  of  its  four  (4) sub assemblies using only eight (8) screws and three (3) internal cable connections. The Garrett Multi-Zone Walk Through Metal Detector is very easy to assemble, configure and operate. No special skills are required. Below is an "Assembly Video" with step-by-step instructions and we also offer a free online training course.

INDUSTRY LEADING WARRANTY
Limited 36-month warranty: Parts and Labour.

DIMENSIONS
